ECUT 1450

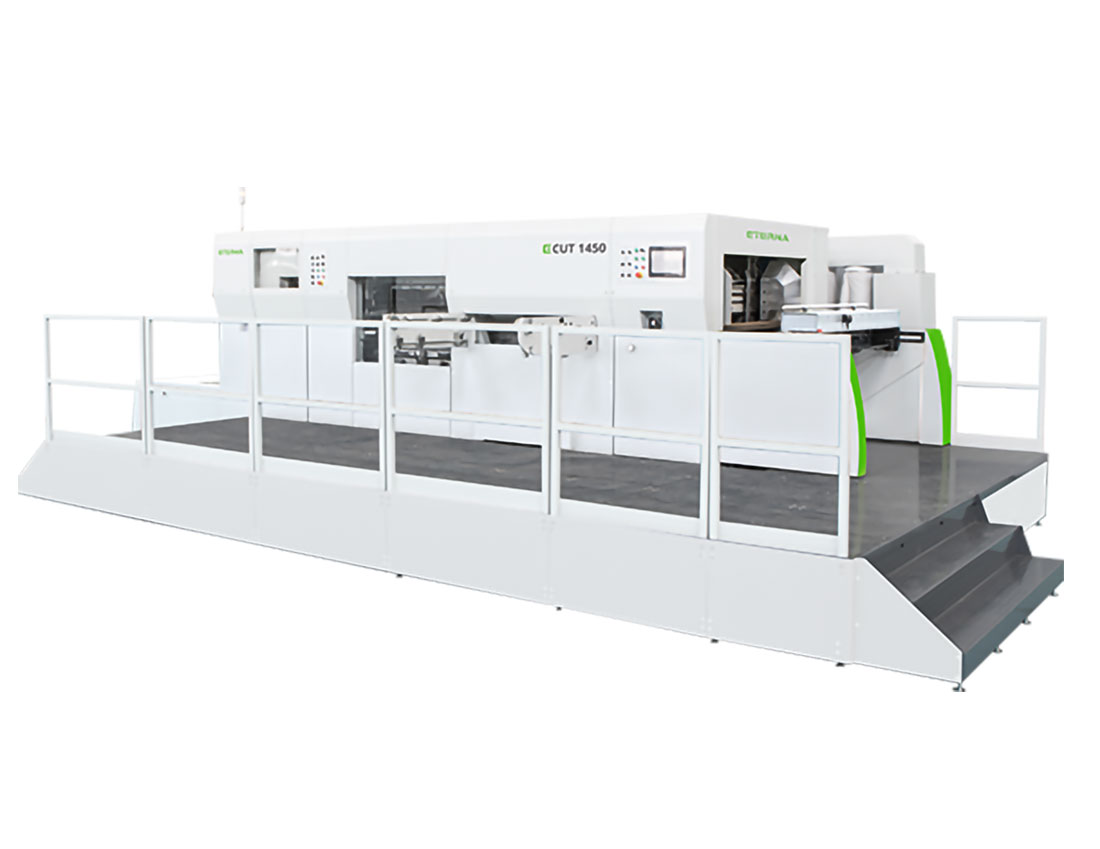

ECUT 1450 SA
Automatic die-cutter with stripping station.
High strength die-cutting frame, high precision mobile platen and driver. Centre line system for quick stripping die set up and change over, upper + lower frames. Non-stop auxiliary delivery table.
• Corrugated Board: E/ B/C flute, thickness up to 4.5 mm
• Cardboard (solid): thickness ≥1 mm (subject to paper quality)
• Max. Sheet Size: 1450 mm × 1100 mm
• Min. Sheet Size: 650 mm × 450 mm

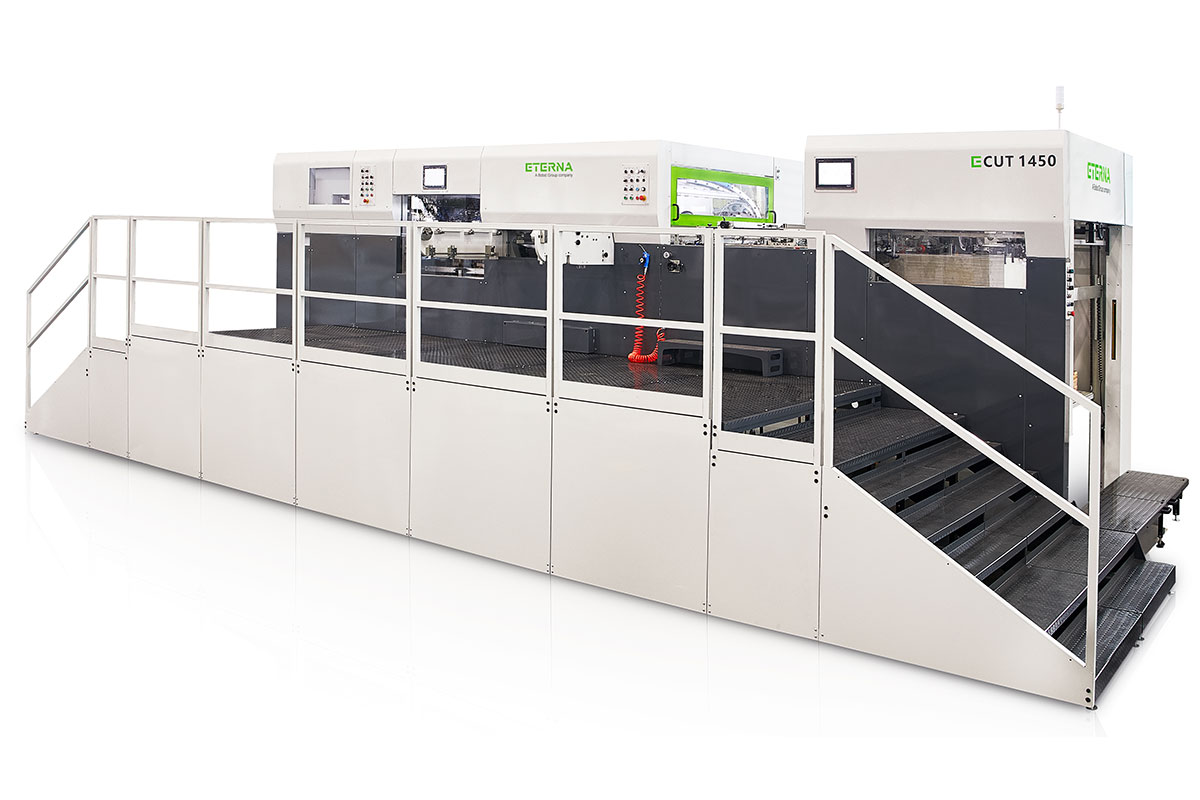

ECUT 1450 E
Automatic die-cutter with stripping station.
Centre line system ensures quick setting up throughout all parts of the machine from feeder to delivery and improves the product quality. Stripping sampling mechanism convenient for operator quality control during machine running. Main engine automatic forced lubrication system recycles fluid while oiling all major parts, along with automatic main drive chain lubrication.
• Corrugated board: E/B/C flute, thickness up to 4.5 mm
• Cardboard (depending on quality), up to: 2000 gsm (thickness: 2mm)
• Paper (depending on quality), min: 80 gsm (thickness: 0.1mm)
• Max. Sheet Size: 1450 mm × 1100 mm
• Min. Sheet Size:580 mm × 500 mm
• Max. Mechanical Speed: 6000 cycles/hour
ECUT 1620

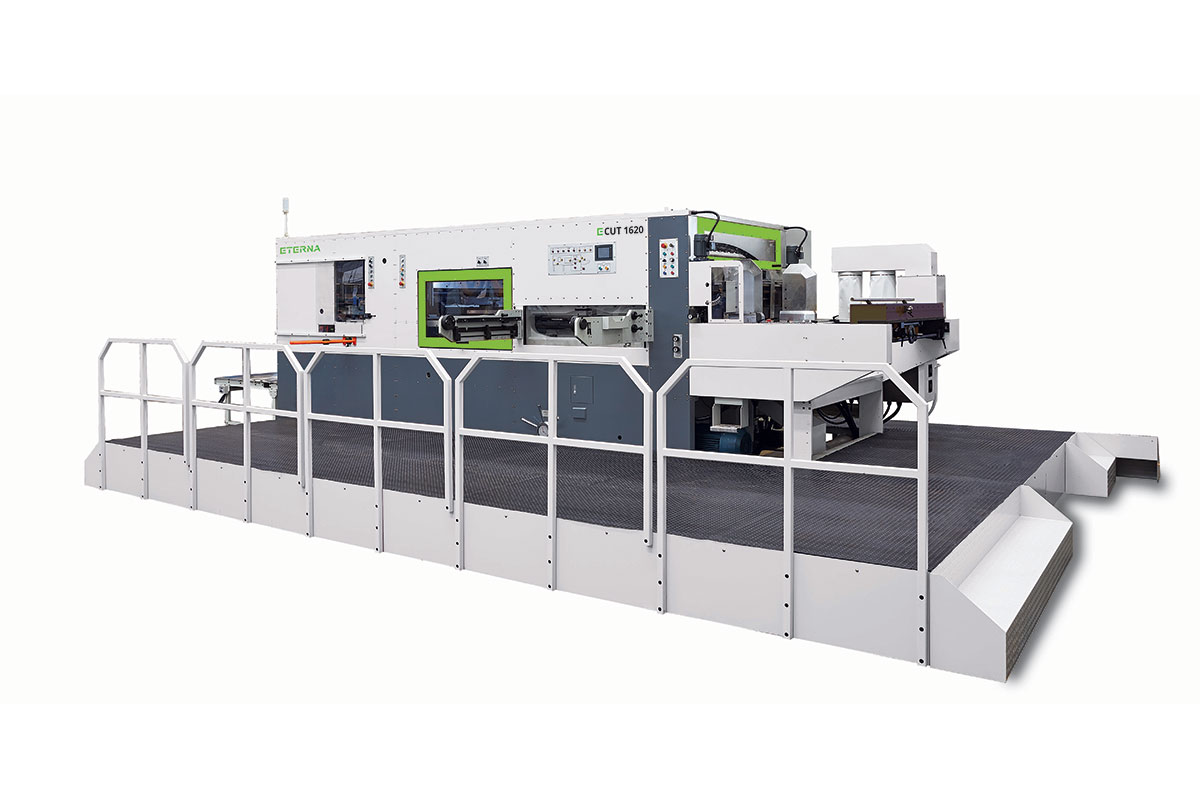

ECUT 1620 SA
Automatic die-cutter with stripping station.
Specially designed for flexo and pre-printed corrugated boxes. It can die cut corrugated board (except litho-laminated boxes) in the range of 1 mm-8.Smm thickness. Feeder is driven by high torque servo motor that can greatly improve the precision in delivery of heavy corrugated boards. Compared to traditional mechanical delivery methods, the accuracy is greatly improved and when precision and high productivity count, this is the machine you want.
There are two choices for delivery, SA is for stacking with counts and SHA is for high piling. You can choose according to your specific requirement.
• Maximum Sheet Size：1620 × 1200 mm
• Minimum Sheet Size：650 × 450 mm
• Maximum Cutting Size：1600 × 1180 mm
• Maximum Mechanical Speed：5000 s/h
ECUT 1620 SAL
Automatic die-cutter with stripping station.
Specially designed for Laminated, flexo-printed, watermarks and pre-printed corrugated boxes with high-precision equipment. It can die cut corrugated board in the range of 1 mm-8.Smm thickness. Feeder is driven by high torque servo motor that can greatly improve the precision in delivery of heavy corrugated boards. Compared to traditional mechanical delivery methods, the accuracy is greatly improved and when precision and high productivity count, this is the machine you want.
There are two choices for delivery, SAL is for stacking with counts and SAHL is for high piling. You can choose according to your specific requirement.
• Maximum Sheet Size：1620 × 1200 mm
• Minimum Sheet Size：650 × 450 mm
• Maximum Cutting Size：1600 × 1180 mm
• Maximum Mechanical Speed：5000 s/h
ECUT 1620 SL
Automatic die-cutter with stripping station.
Specially designed for Laminated, flexo-printed corrugated boxes with high-precision equipment. It can die cut corrugated board in the range of 1 mm-8.Smm thickness. Feeder is driven by high torque servo motor that can greatly improve the precision in delivery of heavy corrugated boards. Compared to traditional mechanical delivery methods, the accuracy is greatly improved and when precision and high productivity count, this is the machine you want.
There are two choices for delivery, SL is for stacking with counts and SHL is for high piling. You can choose according to your specific requirement.
• Maximum Sheet Size：1620 × 1200 mm
• Minimum Sheet Size：650 × 450 mm
• Maximum Cutting Size：1600 × 1180 mm
• Maximum Mechanical Speed：5000 s/h
ECUT 1650

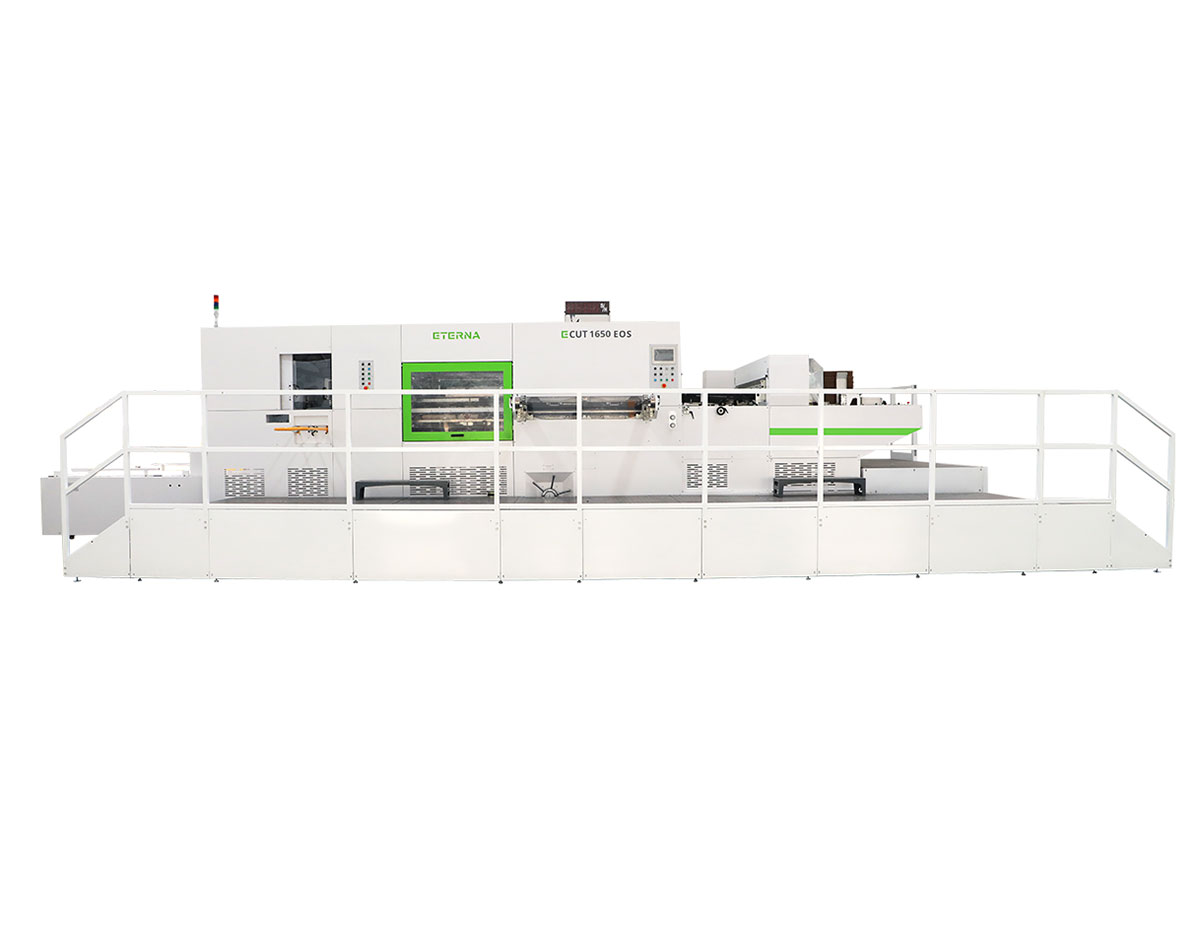

ECUT 1650 PRO SAL|EVO SAL
Automatic die-cutter with stripping station.
Designed to work on litho-laminated, flexo and other pre-printed corrugated boards. This high-performance specialty machine can die cut corrugated board from 1-8 mm thickness. It is equipped with optimized indexing unit that is based on proprietary motion curve to ensure smooth and reliable high production output.
There are two delivery options: regular batch delivery (SAL) and high pile batch delivery (SAHL) to suit your production needs.
• Max. Sheet Size:1650 mm × 1200 mm
• Min. Sheet Size: 650 mm × 450 mm
• Production Speed: 5000 cycles/hour
(subject to working environment, sheet quality and operation skills, etc.)
• Max. Cutting Pressure: 400 tons
• Max. Cutting Size: 1630 mm × 1180 mm

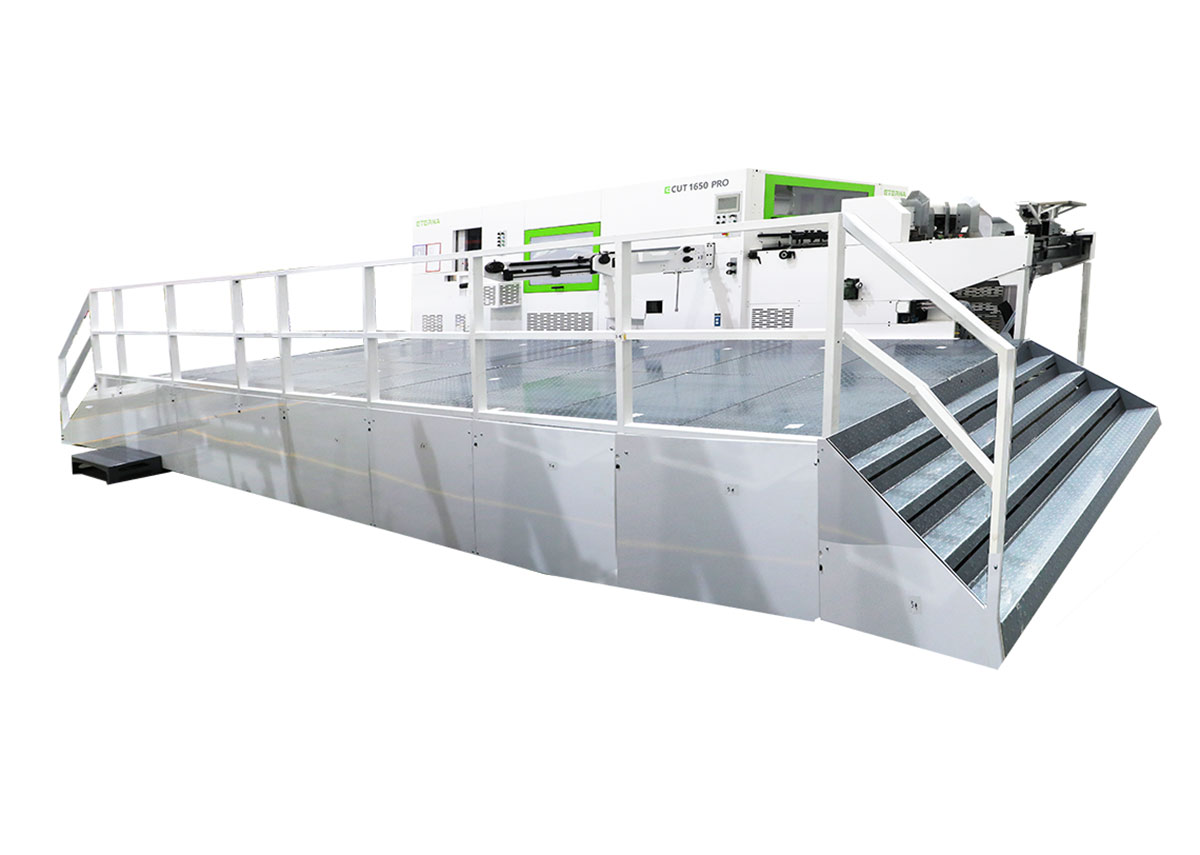

ECUT 1650 PRO SHL
Automatic die cutting and creasing machine is specially designed for laminated, flexo-printed, and pre-printed corrugated boxes with high yield.
It can diecut corrugated board in the range of 1-8.5 mm. The parallel cam driving index unit optimizes motion curve and allows gripper bar to run smoothly, thus reaches higher productivity.
There are two choices for delivery, SL is for stacking with counts and SHL is for high piling.
• Max. Sheet Size: 1650 mm × 1200 mm
• Min. Sheet Size: 650 mm × 450 mm
• Max. Mechanical Speed: 5500 cycles/hour
• Max. Cutting Pressure: 400 tons
• Max. Cutting Size: 1630 mm × 1180 mm
ECUT 1650 ELITE E
Automatic die cutting machine with stripping function, which is specialised for cutting laminated corrugations in G/F/E/B/C flute (or corrugations thickness Maximum 7.5mm) with high output.
The parallel cam driving index unit optimizes motion curve and allows gripper bar to run smoothly, thus reaches higher productivity. Utilizing top-feeding sheet transport methods, along with side-lays, to ensure accurate feeding at all times.
• Max. Sheet Size: 1650 mm × 1200 mm
• Min. Sheet Size: 650 mm × 500 mm
• Max. Mechanical Speed: 6000 cycles/hour
• Max. Cutting Pressure: 400 tons
• Max. Cutting Size: 1630 mm × 1180 mm

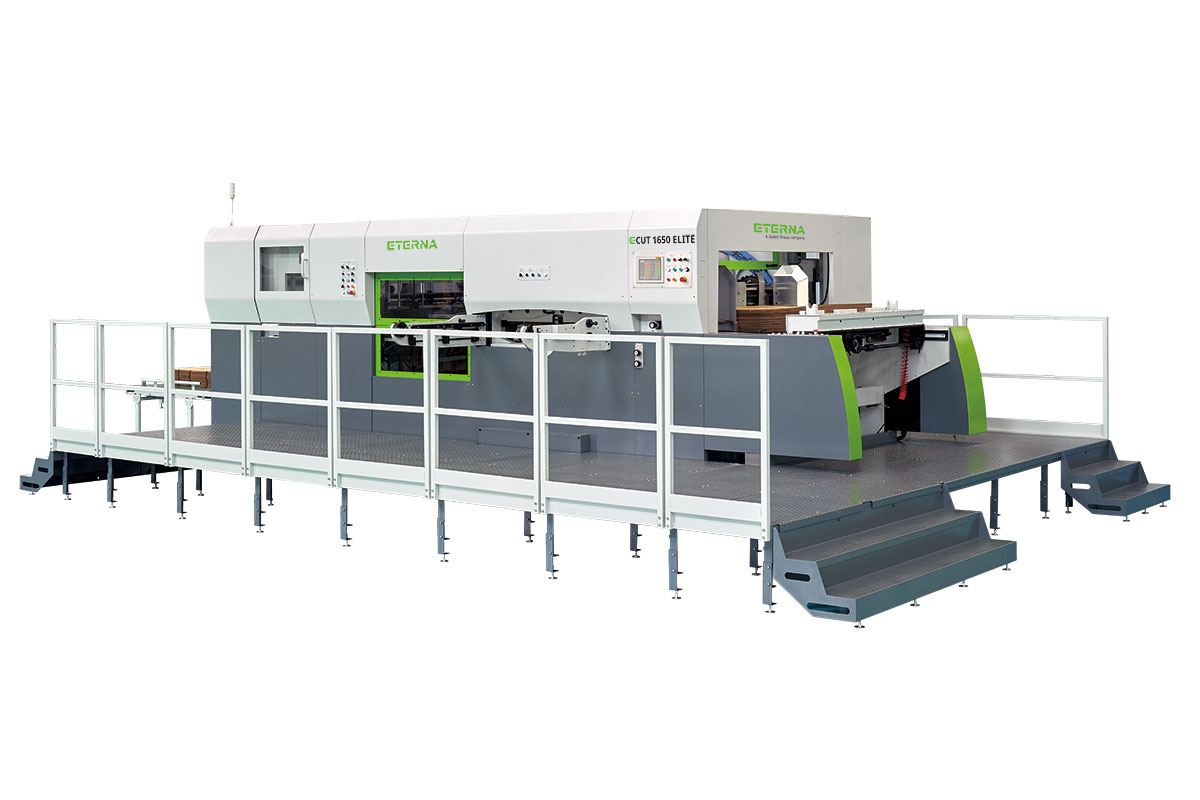

ECUT 1650 ELITE SA
Automatic die cutting and creasing machine, specially designed for flexo-printed and pre-printed corrugated boxes with high yield.
It can diecut corrugated board in the range of 1-8.5 mm. The parallel cam driving index unit optimizes motion curve and allows gripper bar to run smoothly, thus reaches higher productivity.
There are two choices for delivery, SA is for stacking with counts and SHA is for high piling. You can choose according to your specific requirement.
• Maximum Sheet Size：1650 × 1200 mm
• Minimum Sheet Size：650 × 450 mm
• Maximum Cutting Size：1630 × 1180 mm
• Maximum Mechanical Speed：6000 s/h

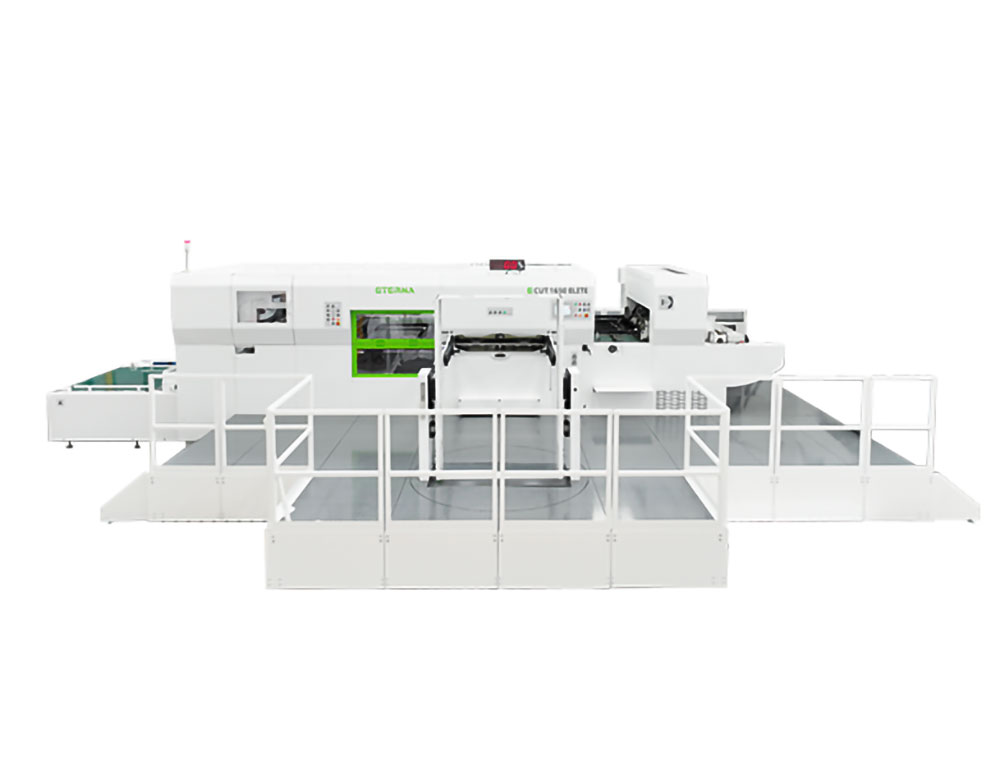

ECUT 1650 ELITE SAL
Automatic die cutting and creasing machine is specially designed for laminated, flexo-printed, and pre-printed corrugated boxes with high yield.
It can diecut corrugated board in the range of 1-8.5 mm. The parallel cam driving index unit optimizes motion curve and allows gripper bar to run smoothly, thus reaches higher productivity.
There are two choices for delivery, SL is for stacking with counts and SHL is for high piling.
• Maximum Sheet Size：1650 × 1200 mm
• Minimum Sheet Size：650 × 450 mm
• Maximum Cutting Size：1630 × 1180 mm
• Maximum Mechanical Speed：5800 s/h

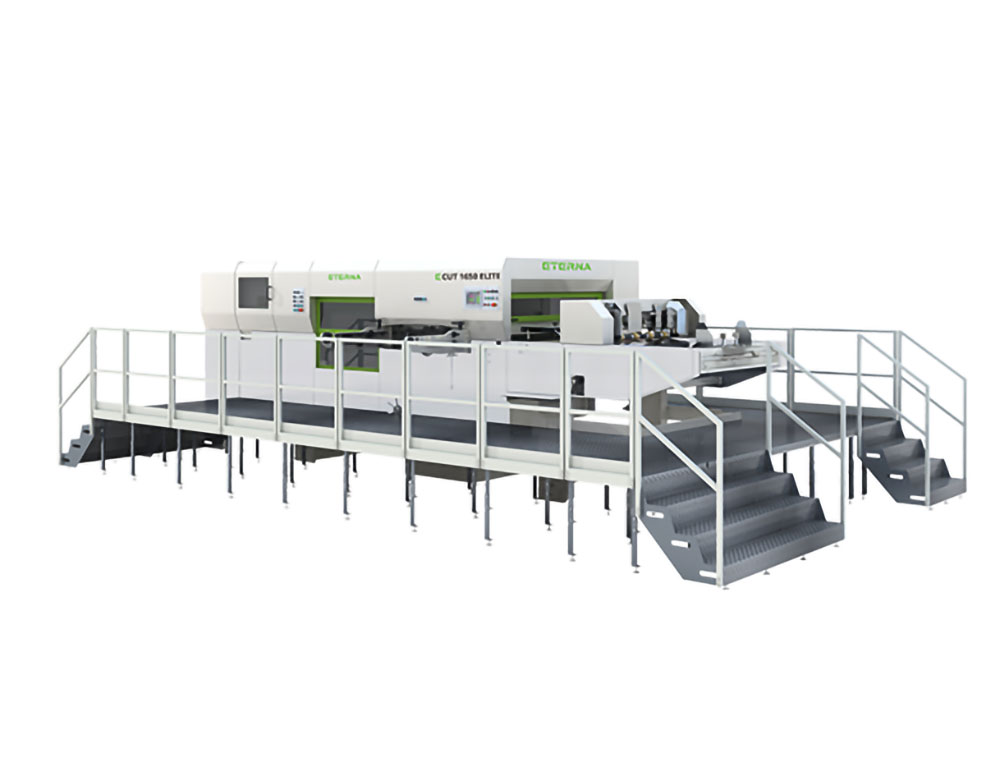

ECUT 1650 ELITE SL
Automatic die cutting and creasing machine is specially designed for laminated, flexo-printed, and pre-printed corrugated boxes with high yield.
It can diecut corrugated board in the range of 1-8.5 mm. The parallel cam driving index unit optimizes motion curve and allows gripper bar to run smoothly, thus reaches higher productivity.
There are two choices for delivery, SL is for stacking with counts and SHL is for high piling. You can choose according to your specific requirement.
• Maximum Sheet Size：1650 × 1200 mm
• Minimum Sheet Size：650 × 450 mm
• Maximum Cutting Size：1630 × 1180 mm
• Maximum Mechanical Speed：5800 s/h
ECUT 2100
ECUT 2100 ELITE CLASS: SA
A super-sized flatbed automatic die cutter. It represented the new height of ETERNA’s research, development as well as manufacturing capabilities.
Upgraded lead edge feeding technology plus newly designed gripper bar paper transporting methods greatly widened the range of stock it accepts. Utilizing premium grade steel structure to make the entire machine more stable under high stress, thus reducing job change-over time and boosting productivity.
• Max. Sheet Size2100 mm × 1300 mm
• Min. Sheet Size780 mm × 550 mm
• Max. Mechanical Speed5500 cycles/hour
(subject to product layout, sheet quality and operation skills, etc.)

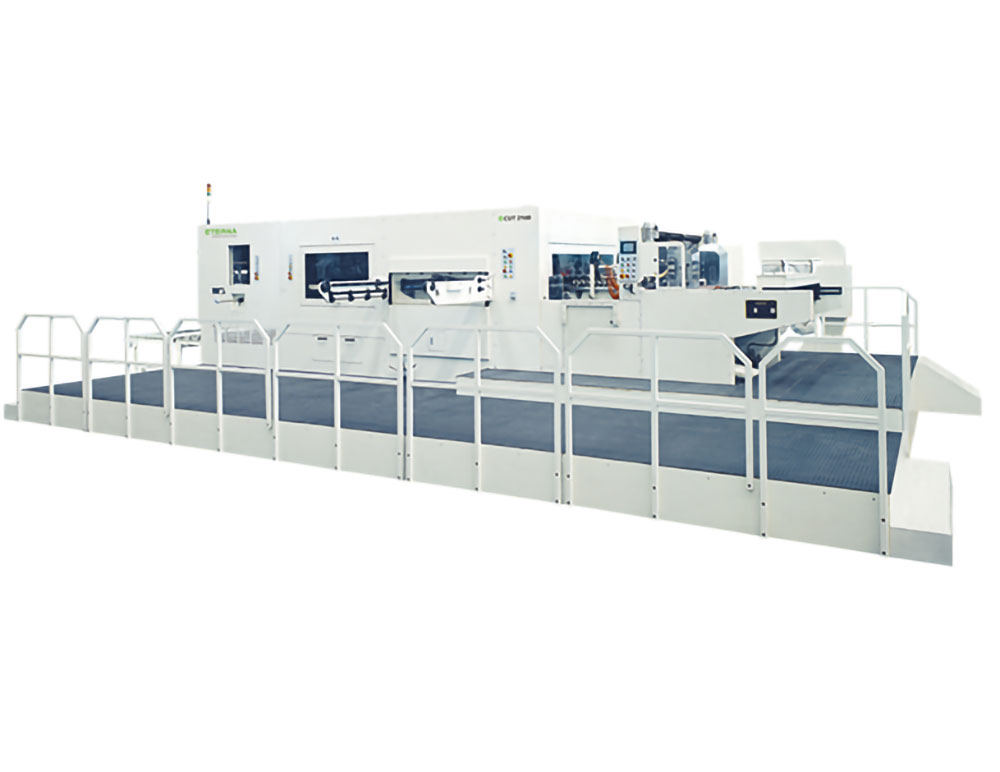

ECUT 2100 S
Automatic die-cutter with stripping station.
Dynamic torque servo motor driven differential speed belt lead edge feeder. Complete lost sheet control throughout the entire machine. Centreline system with quick lock pins on upper frame. Non-stop bundle delivery to ensure continuous productivity and operation efficiency.
• Corrugated Board: E, C, B, A, AB flute and other flute up to 11mm
• Plastic Corrugated Board: 1-11 mm
• Max. Sheet Size: 2100 × 1300 mm
• Min. Sheet Size: 850 × 600 mm
• Max. Mechanical Speed: 4500 s/h
