BW Papersystem’s folio-size sheeters deliver high-quality performance and product quality, meeting the needs of paper and board mills, specialty mills, converters and print shops. Their flexible sheeters consistently handle all paper and board materials, accepting commercial materials in large formats and many other sensitive materials. Customization options are available and include levels of automation, splicing, programmable decurling, and much more.

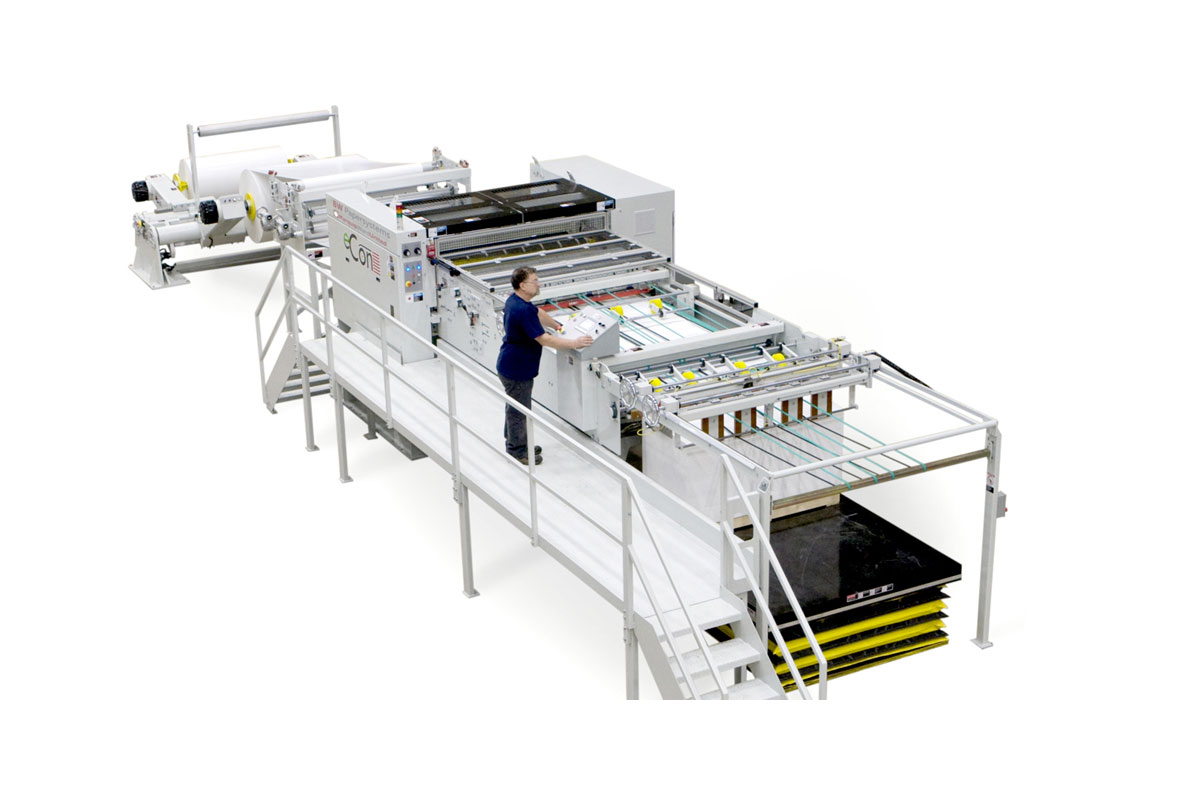

eCon 1650 Sheeter
The eCon sheeter is an economic, standardized dual rotary folio sheeter that is easy to operate and maintain. It offers the sheet quality and accuracy demanded by modern, high-speed, offset press manufacturers.
Remarkable Cost to Output Ratio
The eCon was designed to be affordable and economic, ensuring a quick return on investment.
Superior Knife Cut Quality
This sheeter incorporates legendary Marquip knife technology, providing superior knife cut quality at all speeds and at up to 1000 gsm. The knife has on-machine blade sharpening, low power consumption and the best speed curve.
Safe and Easy Roll Loading
A dual position shaftless unwind loads reel directly from the floor or loading trolleys.
Simple to Operate
The eCon has an intelligent HMI (Human Machine Interface), diagnostics with remote support options and is easy to run and to maintain.

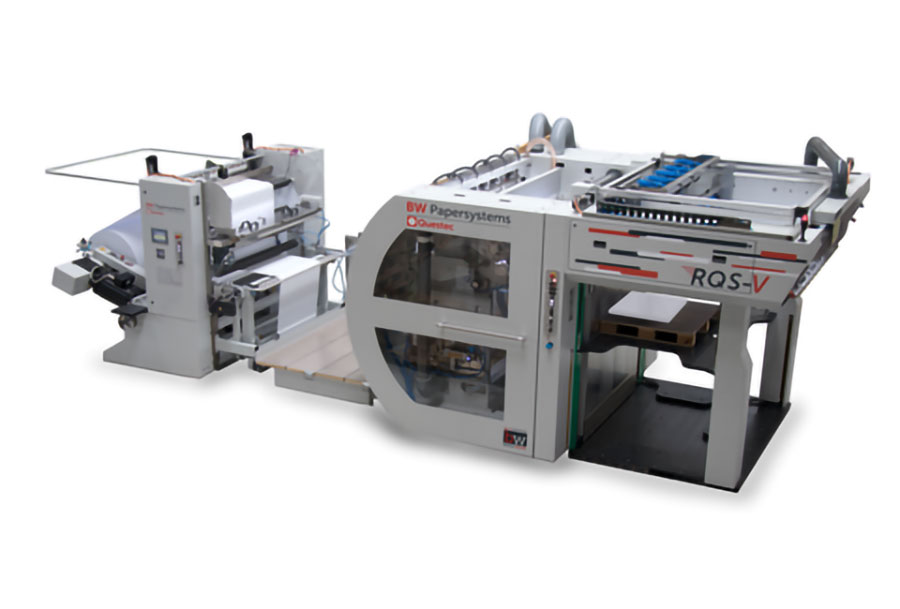

Questec RQS-V 1060 | 1650 Rotary Sheeter
The Questec RQS-V is a size flexible, high-speed sheeter with innovative sheet transport by air. It efficiently handles lightweight paper grades for patient information leaflets, package inserts, wet glue labels or scratch sensitive plastic films. A production speed of 400 m/min and extremely short start-up ramps make the RQS-V ideal for small batches and frequent order changes.
Precise Cut & Stack Quality
A clean, accurate cut with a cutting tolerance of ± 0,15 mm/1000 mm and a perfect stacking pattern due to gentle, safe pulling of the sheets onto the stack.
Various Sizes & Quick Change-Overs
This sheeter offers sheet lengths ranging from 400 to 1500 mm and widths from 250 to 1650 mm. Quick change-over times for size and material allow an efficient handling of smallest batches.
Compact, Ergonomic Design
The RQS-V only needs little space, requires no platform and is easily accessible from all sides
Easy Operation
With its job memory, few setting points and extreme short start-up time, the RQS-V needs little attention. One operator can run two RQS-V sheeters in parallel.
