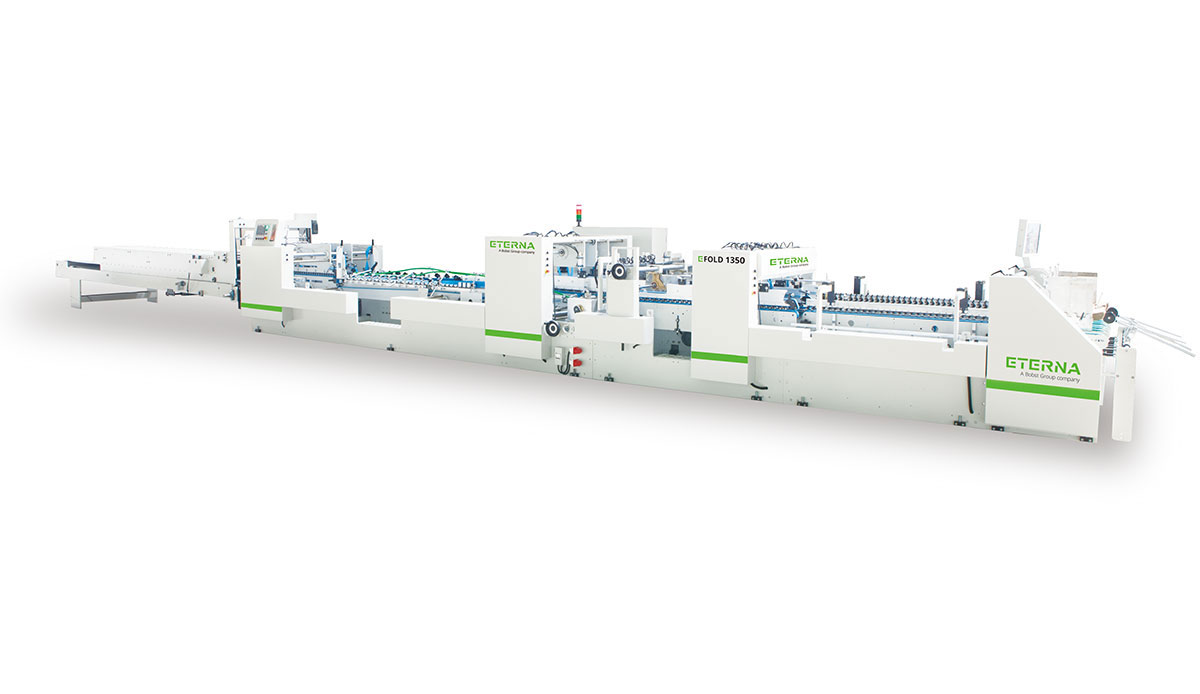

EFOLD 1350|1450
Automatic folder gluer for corrugated board.
Modular design for easy adjustment with one tool adjustments for most accessories, operator friendly. Air-cylinder controlled pneumatic pressing system on conveyor section. Touch screen HMI for easy operation.
• Card board: 300-800 g/m²
• Corrugated board: E / B / C / A Flute
• Max. Belt Speed: 200 m/min
EFOLD 1350|1450 ELITE
Automatic folder gluer for corrugated board.
Whether it is a straight-line box, a crash-lock bottom box, a 4/6 corner box or other boxes, you can precisely configure the ETERNA folder gluers according to your production demands. One tool adjustments for most accessories, operator friendly. Reinforced upper and lower belts for running corrugated and tough boxes. Three-way quick release for instant height settings of top carriers. Su per easy to clear jams when running E flute, B flute, or A flute carton.
• Card board: 800 g/m² (1350) / 1200 g/m² (1450)
• Corrugated board: B Flute (1350) / A Flute (1450)
• Max. Belt Speed: 325 m/min (1350) /280 m/min (1450)
EFOLD 1500|1700|2100|2800|3200
Automatic folder gluer for corrugated board.
Whether it is a straight line box, a crash-lock bottom box, a 4/6 corner box or other boxes, you can precisely configure the ETERNA folder gluers according to your production demands. Extra wide and strong upper and lower belts specially designed for corrugated boxes. Linear rail system at all carriers (upper/lower carriers) for easy and precise adjustments. Upper carrier self-driving system and pneumatic pressing system applied for corrugated board. Special fish tail features designed for corrugated box common problems.
• Card board: 300-800 g/m²
• Corrugated board: F / E / B / C / A / EB / AB Flute
• Max. Belt Speed: 240 m/min

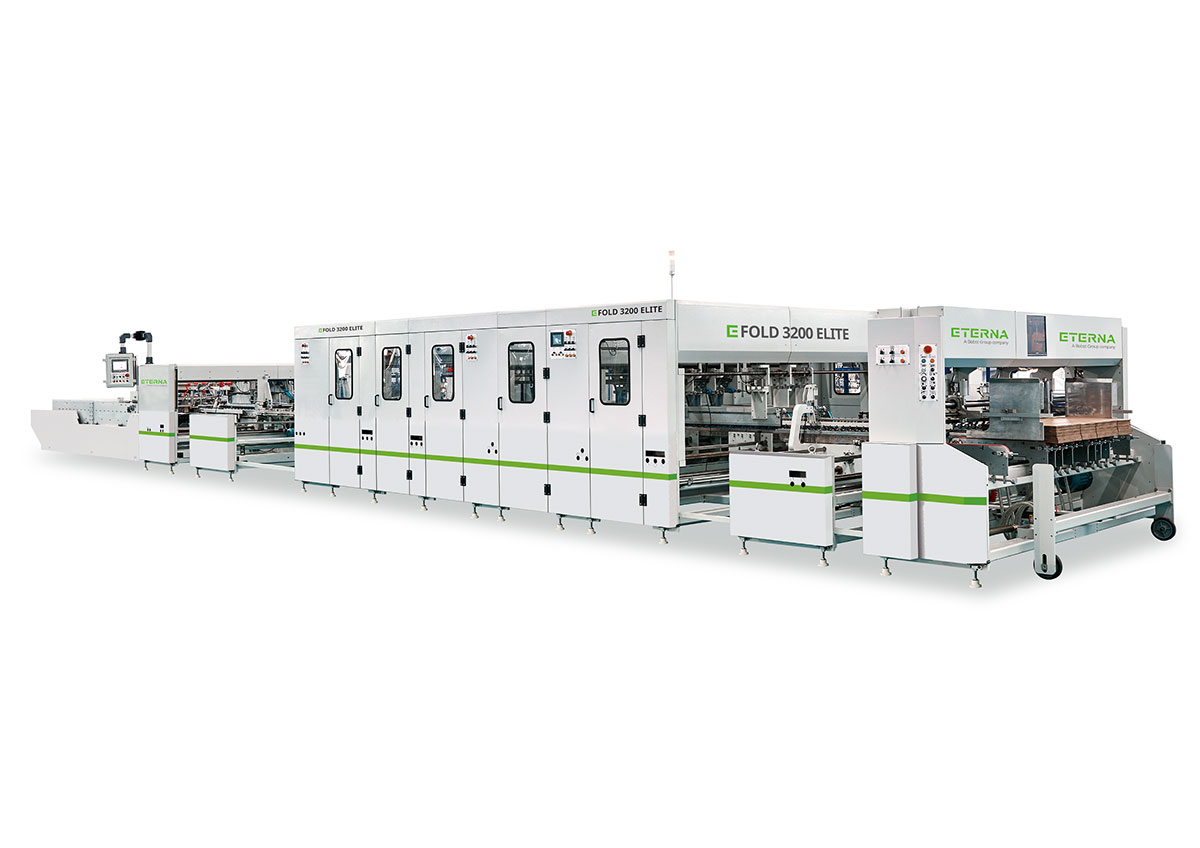

EFOLD 1700|2100|3200 ELITE
Automatic folder gluer for corrugated board.
Modular design easy to upgrade as per customer’s requirements. Linear rail system throughout the machine on all carriers to ensure precise positioning. Motorized carrier movement, with digital position display. Driven upper carrier and pneumatic piston system, for wide range of corrugated boxes.
• Card board: 250-1200 g/m²
• Corrugated board: E-AB Flute
• Max. Belt Speed: 260 m/min
